CL21XB 小型金属化聚酯薄膜盒式电容器

CL21XB 电容器是一种金属化聚酯薄膜电容器，属于CL21X 系列的超小型盒式版本。

• 关键特性：采用无感卷绕或叠层结构，外部使用阻燃塑料外壳和环氧树脂进行密封和封装，实现了体积小、自愈性好、绝缘电阻高和高频损耗小的特点。
• 核心应用：广泛应用于直流、脉动及VHF级信号的电路，充当隔直、旁路、耦合和滤波等角色，是消费电子、电源及通讯设备中的常用元件。

CL21X
Minaturized Metallized Polyester Film Capacitor

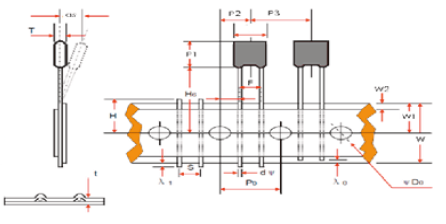

VAC	uF	W(±1)	H(±1)	T(±1)	P(±1)	D(±0.05)

50/63VDC/100VAC	0.0010	7.3	7.5	4.5	5.0	5.0
50/63VDC/100VAC	0.0012	7.3	7.5	4.5	5.0	5.0
50/63VDC/100VAC	0.0015	7.3	8.0	4.5	5.0	5.0
50/63VDC/100VAC	0.0018	7.3	8.0	4.5	5.0	5.0
50/63VDC/100VAC	0.0022	7.3	8.0	5.0	5.0	5.0
50/63VDC/100VAC	0.0027	7.3	8.0	5.0	5.0	5.0
50/63VDC/100VAC	0.0033	7.3	8.0	5.0	5.0	5.0
50/63VDC/100VAC	0.0039	7.3	8.0	5.0	5.0	5.0
50/63VDC/100VAC	0.0047	7.3	8.0	5.0	5.0	5.0
50/63VDC/100VAC	0.0056	7.3	8.0	5.0	5.0	5.0
50/63VDC/100VAC	0.0068	7.3	8.0	5.0	5.0	5.0
50/63VDC/100VAC	0.0082	7.3	8.0	5.0	5.0	5.0
50/63VDC/100VAC	0.01	7.3	7.5	5.0	5.0	5.0
50/63VDC/100VAC	0.012	7.3	7.5	5.0	5.0	5.0
50/63VDC/100VAC	0.015	7.3	7.5	5.0	5.0	5.0
50/63VDC/100VAC	0.018	7.3	8.0	5.0	5.0	5.0
50/63VDC/100VAC	0.022	7.3	8.0	5.0	5.0	5.0
50/63VDC/100VAC	0.027	7.3	8.0	5.0	5.0	5.0
50/63VDC/100VAC	0.033	7.3	8.0	5.0	5.0	5.0
50/63VDC/100VAC	0.039	7.3	8.0	5.0	5.0	5.0
50/63VDC/100VAC	0.047	7.3	8.0	5.0	5.0	5.0
50/63VDC/100VAC	0.056	7.3	8.5	5.0	5.0	5.0
50/63VDC/100VAC	0.068	7.3	8.5	5.0	5.0	5.0
50/63VDC/100VAC	0.082	7.3	8.5	5.0	5.0	5.0
50/63VDC/100VAC	0.10	7.3	9.0	5.0	5.0	5.0
50/63VDC/100VAC	0.12	7.3	8.5	6.0	5.0	5.0

50/63VDC/100VAC	0.15	10.5	9.0	6.5	7.5	0.5
50/63VDC/100VAC	0.18	10.5	10.0	6.5	7.5	0.5
50/63VDC/100VAC	0.22	10.5	10.5	6.5	7.5	0.5
50/63VDC/100VAC	0.27	10.5	11.0	7.5	7.5	0.5
50/63VDC/100VAC	0.33	10.5	11.5	7.5	7.5	0.5
50/63VDC/100VAC	0.39	10.5	11.5	8.0	7.5	0.5
50/63VDC/100VAC	0.47	10.5	12.0	8.0	7.5	0.5
50/63VDC/100VAC	0.56	15.0	13.5	8.0	10.0	0.5
50/63VDC/100VAC	0.68	15.0	14.0	8.5	10.0	0.5
50/63VDC/100VAC	0.82	15.0	14.5	9.0	10.0	0.5
50/63VDC/100VAC	1.0	15.0	15.0	9.5	10.0	0.6
